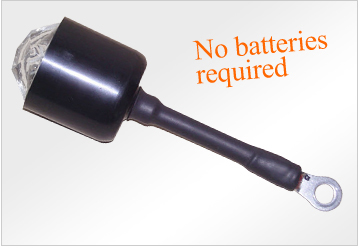

high voltage detector

high voltage detector

  • Mounts easily with nut and bolt ( user supplied)
  • Flashing LEDs are easy to see.
  • Eliminates need to open enclosures to check for voltage.
  • Flexible neck allows orientation for best visibility
  • Solid state design provides over 10years life expectancy.
  • No batteries required
  • Continuous monitoring

The VD90x series is a solid state visual indicator that signals the presence of system voltage by sequentially flashing a cluster of 3 LEDs. It is firmly bolted to any convenient live bus or terminal, and the flexible head may be bent for a convenient viewing angle.





VD903

VD906

VD9012

VD9024

VD9036

Voltage Rating(KV)

3.3

6.6

12

24

36

Mounting  &dimension

(dai =12mm) hole. AMP Terminal

45 d x 70 L (mm)

Lead = 80 mm

Indicator

Cluster of 3 high brightness red LEDs

Body material

Bsae : polyester. , ABS

Cap lens: Polycarbonate

Ring lug

Tinned copper  AMP terminal

Status

Voltage presence causes sequential flashing of LEDs.

Higher voltage = faster flashing

Life expectancy

Over 10 years

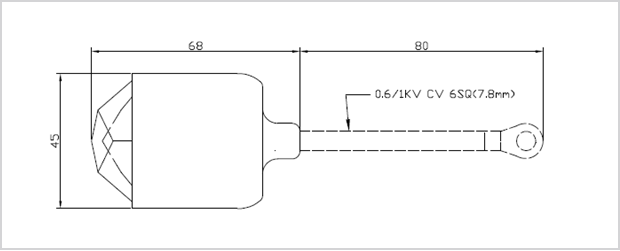

1. Out side dimension
