Photovoltaic Solar Panel



Sign wave

High- Efficiency

Out of the sun

A Sign Wave, that Distortion isless than 3%

All burden efficiency have a performance about 81~85%

Max. 3 days

The average time the solar : 3.3 Hr/ day



DAIDONG  Solagen carriage¡¯ s  is  advanced system control processing technology and high technology production facilities have used a multi-crystal solar cell with an efficiency of over 15%. the entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation.

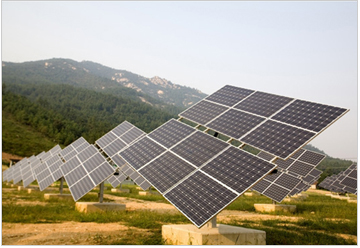

Photovoltaic Solar Panel

  • Low iron, tempered glass, and anodized aluminum frame construction

  • 20 year output warranty

  • Weather resistant junction box or multi-contact connectors

Type[KORINS]

KSMT -050D

Module Efficiency

14.05%

Cell Efficiency

15.70%

Power Peak (W)

50

Vm (V)  /  Voc (V)

17.0 / 21.53

Im (A)  /  Isc (A)

2.97 / 3.2

Power Tolerance

+/- 5%

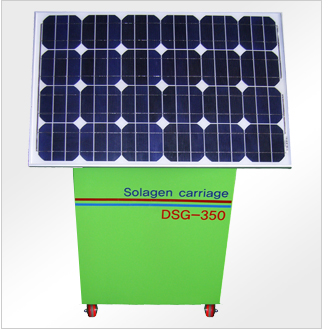

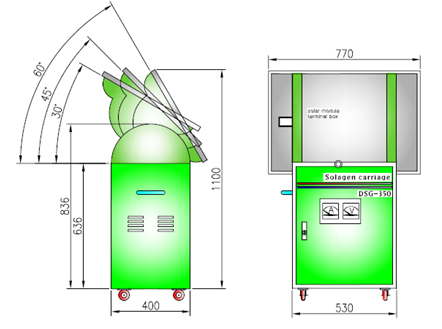

PHOTOVOLTAIC CONTROLLER Solagen carriage DSG - 350

The new Sine Wave Inverter series inverter adopts superior features and  is designed with the highest standards in the industry.

The high frequency structure reduces the size of the Pure Sine Wave Inverter and achieves the highest power density in the market.



  • High frequency switching technology for compact size and light weight

  • Pure sine wave output (THD < 3%) for wide range of applications and harsh environment

  • High efficient DC-to-AC conversion minimizing energy loss

  • "All master" dynamic mechanism eliminate single point failure to optimize reliability

  • Input/output isolated design for the maximum operation safety

  • Intelligent cooling fan speed control determinate by loads

  • LED indicators

  • DSP (The real time digital signal processor ) control

  • Multiple protection: input low voltage / overload short circuit / low battery alarm input over voltage / over temperature

  • One PCB board mounting design for easy placement.

Output Volts

13.0±0.5 V

Maximum current

10A

Max charge voltage

13.6V

Load disconnection

13.1V

Load reconnection

11.1V

Charge mode

3 stage

Operating temperature

-35 / +55°C

Model

DSG -350

Out put Power (110Vac , option 220V ac)

Continuance

350 w

MAX (3min)

400 w

Surge power

600 w(2msec)

Wave

Pure sine wave

No Load current (MAX)

<1.0A

Input voltage

12.0~30.0V

Low voltage alarm / breaking

11.0V / 10.5v

Low voltage reset

12.5V

Over  voltage breaking / reset

15.3V / 14.2V

conversion efficiency rate

81%~85%

Inverter input voltage

12V /  24V(option)

Inverter voltage range

10.5~15V

Output voltage

110V AC  /220V(option)

Output frequency

50Hz/60Hz  +-0.05% ( selector switch)

Input terminal

 Screw bolt  (independent terminal)

Output terminal

 Screw bolt  (L, N, FG) Receptacle

Operating temperature

-0¡É~+40¡É

Storage temperature

-10¡É~+70¡É

Cooling method

Automatically cooling control

MAINTENANCE – FREE RECHARGEABLE SEALED LEAD ACID BATTERIES

Sealed lead  acid batteries with oxygen recombination technology.

Totally sealed batteries, maintenance free, suitable for photovoltaic systems, and for every application that needs long duration and high performances.

This  battery have an average life of 10 years (if the use is correct).

The battery is constructed by plates, separators, safety valves and container.

Since the electrolyte is held by a glass mat separator and plates, the battery can be used in any direction and position without leakage

ES 65-12

65AH

Stand by

13.5 – 13.6 V

Terminal  Dia [mm]

6

Measure  L W H[mm ]

325 L x166W X174H

Weight [Kg]

22 .5Kg

Maker / series

ROCKET / ES series



Power Consumption - Do not existing Sun : 3 days

Refrigerator [24hr]

Electric lamp [4hr]

  • OSRAM
  • 18watt
  • 2pcs
  • 2 DOOR
  • 230 Lit
  • 41 kWh/ M
  • 1set


TV (picture) [3hr]

Electric fan[24hr]

  • Braun tube
  • 65watt
  • 1 set
  • 55 watt
  • 1 set
