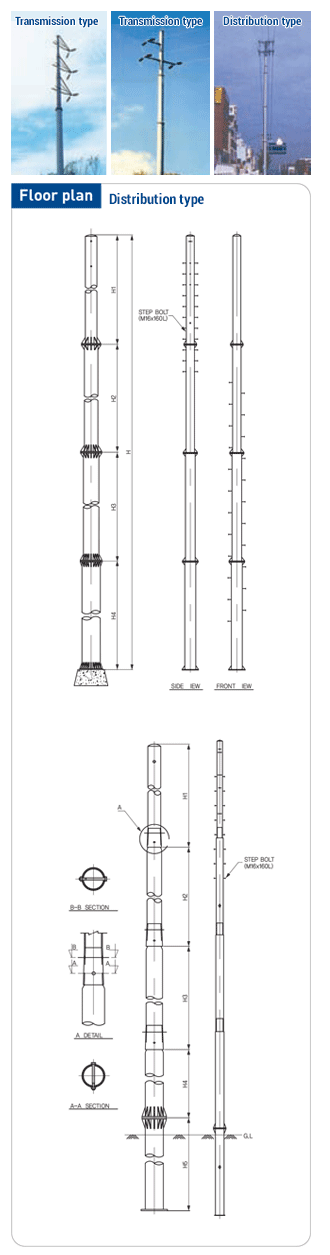

 TUBULAR POLE FOR TRANSMISSION & DISTRIBUTION LINES

high voltage switchgear

  1. Poles are made of carbon steel pipe or something equal to it,
    and necessary parts are made according to standardization.

  1. Fusing galvanization with zinc.

  1. - Ease of installation
    - Convenient Transport
    - installable even in a confined place
    - Less footprint compared to steel tower
    - Possible decision of types in compliance with horizontal angle
      (Line steel poles of electric transmission & electric distribution)

  1. Highways, harbors, parks, parking lots, factories and great lighting facilities.

(mm)
   H(Height)     H1    H2    H3   H4      H5
    15M    5,000
    5,000    5,000
      -      -
    18M    6,000
    6,000    6,000
      -      -
    20M    5,000    5,000    5,000    5,000     -
    25M    5,000    5,000    5,000    5,000    5,000
D1, D2 are in the compliance of structure estimation according to the project conditions of installation place.
(mm)
    H
 (Height)		   Design   weight    H1    H2   H3      H4    H5
    9M   200kg
   2,500    -
   2,500   2,500   1,800
   11M   300kg
   3,000    -
   3,000   3,000   2,100
   14M   500kg   3,000   3,000   3,000   3,000   2,700
  D1, D2 are in the compliance of structure estimation according
  to the project conditions of installation place.
(mm)
   H(Height)   Design   weight    H1    H2   H3      H4
    18M    1,100kg
     6,000     6,000
      -      -
    20M    1,800kg
     5,000     5,000
     5,000     5,000
  D1, D2 are in the compliance of structure estimation according to
  the project conditions of installation place.
